BOND TESTER

Testing the adhesion strength of building materials

More info
Hammond Concrete Bond tester for hire.
Hire or Buy Today! Call 01243 555 720

Scope

To determine the bond strength/material strength of a wide range of construction materials

Overview

The force required to pull a specified diameter of coating away from its substrate provides an indication of the strength of adhesion between the coating and the substrate.

Method

Using 50mm, 75mm or 100mm circular steel or aluminium discs for concrete, core a notch in the material under test to the depth of the bond surface. Attach the disc to the test area with epoxy adhesive. Centralise and fit the puller assembly and bridge to the secured disc and apply load until failure occurs. Relative to the force applied and the area under test a nominal tensile strength in Mpa for the material may be delivered.

Please call us or email us to discuss your requirements: 01243 555 720

  • Concrete bond tester kit
  • Concrete bond tester
  • Concrete bond tester setup

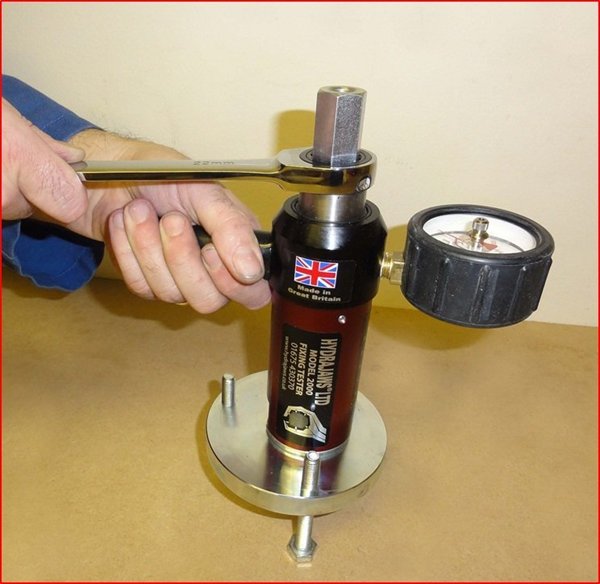

  • Concrete bond tester in use
